Design first, or the agent designs for you

Pull request #335 added one button to the visual-diff console: a small wand that fills in the name of the next capture set. It landed as six commits, in this order:

docs(design):  IconButton in the normative inventory, and the wand beside the label field
feat(ui):      IconButton — an icon-only button whose accessible name cannot be forgotten
feat(visual-diff-ui): a wand that names the next capture set
test(e2e):     the console names the next capture set (EXPECTED_SCENARIOS 41 → 42)
docs(e2e):     the scenario counts the guards actually enforced
chore(visual-diff): accept baselines from the pinned container

The first commit renders nothing. It puts a rectangle on a design board, names it, and assigns it a tier. Only after that does a line of component code exist.

That order is the whole subject of this post. It used to be a matter of taste. It stopped being one the moment an agent started writing the second commit.

What an agent can infer, and what it cannot#Link to What an agent can infer, and what it cannot

Point a competent agent at this repository, and it works out most of the rules without being told. It is a pnpm monorepo. It is Next.js. Tests are arranged AAA; acceptance lives in Gherkin executed by Playwright; styling resolves through tokens rather than literals. None of that needs explaining, because it leaves fingerprints on every file.

The inventory leaves no fingerprints.

Should this be an atom called IconButton, or a variant of Button, or a component local to the console? There is no answer to that anywhere in the codebase, because it is not a fact about the codebase. It is a decision. And an agent handed a question with no answer does not stop and ask — it answers, plausibly, locally, and differently each time.

That is the actual failure mode. Not ugly code: a second icon button, under a third name, three weeks later, in a repo that already had one.

The board is a file in the repo#Link to The board is a file in the repo

The design for this project is designs/acceptance-gate.pen, a Pencil file, committed at the root of the monorepo next to apps/ and packages/. Four boards live inside it, and each is exported to PNG under designs/exports/ — also committed:

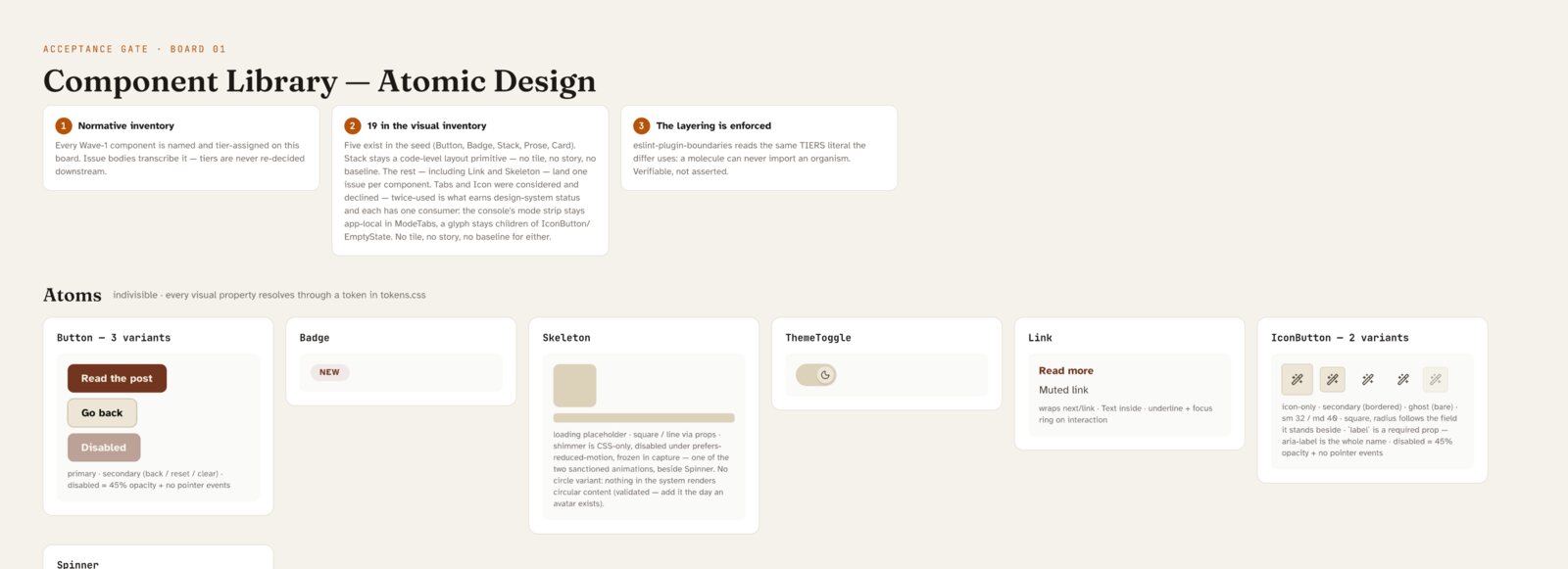

• Board 01 — Component Library: the normative inventory. Every component named, tier-assigned, and captioned with its variants. Sixteen atoms, six molecules, four organisms, two templates, as of today.
• Board 02 — Flows & Decisions: the reasons. Typography, dark mode, the console's four flows and four decisions. It carries an explicit scope line: "Engineering decisions live in the plan document — this board records design choices only."
• Board 03 — Pages and Board 04 — visual-diff console pages: every route, in all four capture variants.

The word doing the work in that paragraph is committed. The .pen file moves with the branch. It shows up in the pull request. It is present in any checkout the agent is given, including a sandbox with no network and no browser. A Figma URL is none of those things — it cannot be opened from inside the box the agent runs in, it does not travel with the branch, and it never appears in git log.

I still use Figma, and it still wins where it wins: exploration, motion work, anything I want to show a person rather than a machine. But the artifact an agent is expected to obey has to be inside the checkout. That is not a preference between tools; it is a property of where the agent can reach.

There is an honest cost. A .pen is a binary blob to git — the design commit above reports Bin 1236097 -> 1227491 bytes and not one word more. That is exactly why the PNG exports are committed alongside it: the review happens on the export, which is diffable enough to argue with.

The routing table is what makes it normative#Link to The routing table is what makes it normative

A design that nobody is required to read is a mood board. AGENTS.md at the repo root is a routing table — read this before touching that — and four of its rows point at the design:

Never re-decided in code. An issue body in this repo transcribes the board; it does not reopen it. When the agent needs a name, the name already exists in one place.

The most useful thing a board produces is a refusal#Link to The most useful thing a board produces is a refusal

Board 01's header carries a note that is worth more than any tile on it:

Tabs and Icon were considered and declined — twice-used is what earns design-system status, and each has one consumer: the console's mode strip stays app-local in ModeTabs, a glyph stays children of IconButton/EmptyState. No tile, no story, no baseline for either.

Two open issues — #365 and #339 — were closed by a commit that changed no rendered output. Both had been deferred to "a design task" that nobody had done, and the board's own rule answered both: one consumer is not a design system component.

That refusal has a price attached, which is why it needs to be decided somewhere visible. Admitting a component to packages/ui costs a tile on the board, a story in Storybook, and two committed screenshots per variant that CI compares on every pull request, forever. An agent optimizing for "make the button work" will never weigh that. It is not being careless — it simply cannot see the bill.

Boards decay too, and pretending otherwise would be dishonest. The same commit deleted a viewports field and a --skip-build checkbox that Board 04 had drawn for a CLI that never had them. A board row is a claim about the codebase, and claims rot when a fix rides along with unrelated work. The answer is to audit the board against the repo periodically — not to stop keeping one.

"Atom" is an import rule, not a size#Link to "Atom" is an import rule, not a size

Atomic Design gets dismissed as vocabulary — a nicer word for small. In this repo, it is a constraint with teeth, because the tier list exists exactly once:

// packages/visual-diff/src/policy.mjs
export const TIERS = ['atoms', 'molecules', 'organisms', 'templates'];

Three consumers import that one array:

1. eslint-plugin-boundaries, which turns the layering rule into a lint error — an atom that imports a molecule fails pnpm lint; it does not merely violate a convention.
2. The Storybook layering page, which renders the tiers from the same list rather than restating them in prose that can drift.
3. The visual-diff capture matrix — twelve modes of tier × viewport × theme. Atoms and molecules are captured at desktop only, because they do not reflow; organisms and templates are captured at both.

So when the board writes atom above a tile, it is not describing a size. It is choosing an import boundary the linter will enforce, a home in Storybook, and a set of screenshots the differ will compare on every pull request. That is a specification, in the ordinary engineering sense of the word.

The order, restated#Link to The order, restated

Board → issue → code → test → baselines.

The board decides what exists and what it is called. The issue transcribes it. The agent implements it. Playwright captures it. The differ compares it against what was committed.

Every step after the first is machine-checkable, which is why every one of them is automated here. The first step is the one that isn't — and that is precisely why it is still mine to do.

An agent can read this repository and infer nearly everything about it: the framework, the conventions, the shape of a test, the way a component is styled. What it cannot infer is what you decided not to build. That part still has to be drawn by someone, before the first line of code — and it has to be drawn somewhere the agent can actually reach.
